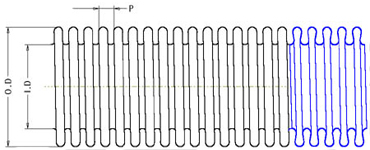

Nominal
diameter
[mm]
diameter[mm]
Radius of
curvature[mm]
Wight[kg/m]
Burst
Pressure
[kgf/cmG]
[BRAIDºÎÂø]
I.D
O.D
WALL
THICKNESS
MINIMUM
BEND
REPEATED
BEND
TUBE
BRAID
Working
Pressure
Test
Pressure
BUST
Pressure
FL08-S
9.8
13.0
0.20
20
80
0.13
0.09
145
328
581
FL10-S
10.3
15.0
0.25
25
95
0.20
0.11
89
133
357
FL15-S
13.1
18.2
0.25
30
130
0.23
0.17
71
107
286
FL20-S
20.5
32.5
0.25
30
160
0.30
0.24
51
76
204
FL25-S
25.9
32.9
0.25
40
190
0.55
0.30
40
61
163
FL32-S
34.0
48.5
0.30
50
240
0.78
0.48
35
53
143
FL40-S
40.5
48.5
0.30
75
290
1.13
0.60
28
42
112
FL50-S
53.0
61.7
0.30
95
340
1.45
0.78
25
38
102
FL65-S
65.5
76.7
0.40
130
395
1.88
1.23
17
26
71
FS80-S
76.0
90.0
0.40
225
440
2.50
1.16
14
22
59
FL100-S
97.1
110.0
0.40
200
480
3.60
1.97
12
18
49

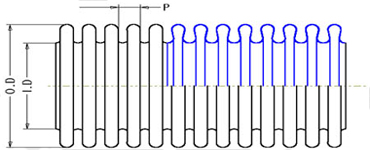

Nominal
Diameter
[mm]
diameter(mm)
Radius of
curvature
[mm]
Weight
[kg/m]
Burst
Pressure
[kgf/cmG]
[BRAIDºÎÂø]
I.D
O.D
P
WALL
THICKNESS
TUBE
BRAID
FL20-U
20.0
27.0
7.0
0.25
170
0.27
0.24
173
FL25-U
25.0
34.1
8.0
0.30
170
0.30
0.30
163
FL32-U
32.0
43.5
10.0
0.30
180
0.40
0.48
153
FL40-U
40.0
52.5
11.5
0.30
200
0.59
0.48
132
FL50-U
45.0
63.5
12.5
0.30
225
0.75
0.60
112
FL65-U
65.0
82.0
12.5
0.30
250
0.98
0.78
92
FL80-U
77.0
94.0
13.0
0.40
275
1.54
1.23
66
FL100-U
101.0
119.5
15.0
0.40
350
2.02
1.61
56
FL125-U
124.0
145.0
15.5
0.40
425
2.47
1.97
41
FL150-U
149.0
172.0
17.0
0.40
500
2.97
2.38
36
FL200-U
200.0
228.0
21.0
0.50
750
4.98
3.98
32
FL250-U
254.0
285.8
24.0
0.50
900
6.34
5.07
28
FL300-U
300.0
334.0
25.0
0.60
1,200
8.99
7.19
20
